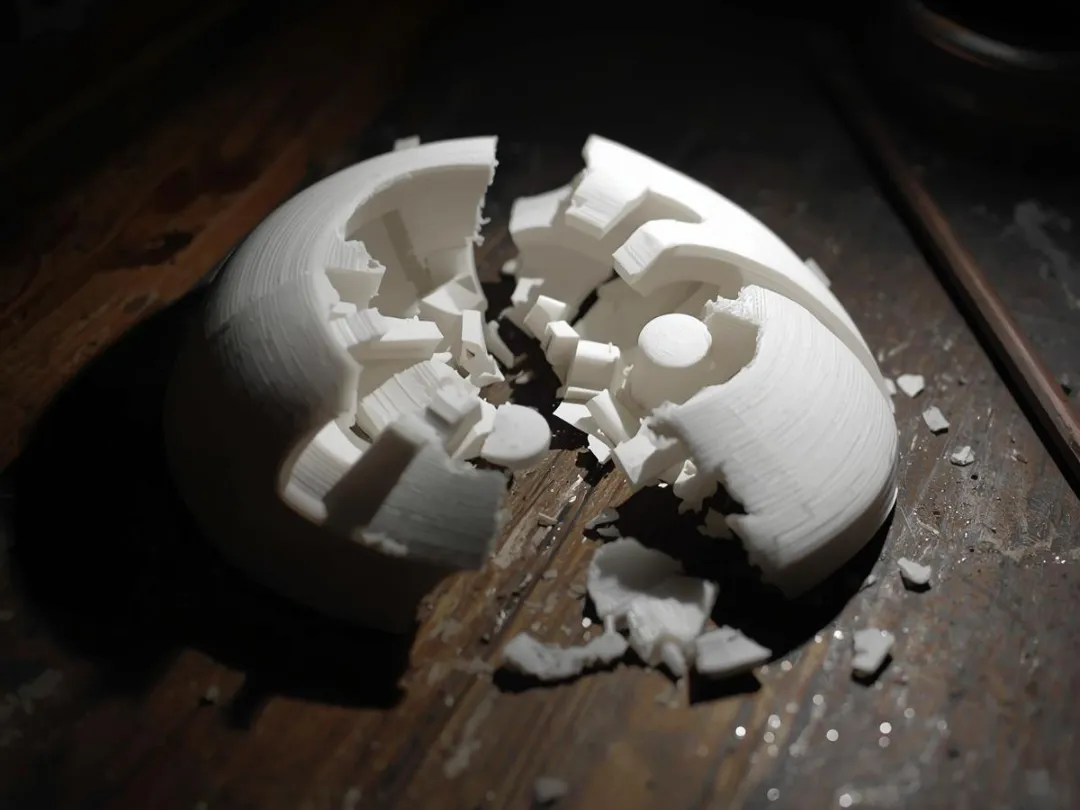

One of the most common frustrations in 3D printing is this: the model looks perfect in CAD, it prints without errors… and then…it breaks in your hands.
Thin parts are especially guilty of this. Clips snap, walls crack, tabs break off, and decorative details feel weak or brittle. This isn’t a printer problem – it’s almost always a design problem.
After designing and printing numerous functional and decorative models, I noticed that thin parts fail for the same few reasons repeatedly.
The good news is that with small design changes, you can make thin features dramatically stronger without making the model bulky or ugly.
The biggest mistake is assuming that plastic behaves the same way in 3D printing as it does in injection-molded parts. It doesn’t. 3D printed parts are built layer by layer, which means strength is anisotropic – strong in one direction, weak in another. Thin sections amplify this weakness.
Very thin walls often end up being only one or two extrusion lines thick. Even if the slicer shows them as “solid,” in reality, there is very little material holding the part together. When stress is applied, especially across layer lines, the part fails easily.
In CAD, a 2 mm wall might look perfectly fine. On screen, it even looks sturdy. But once printed, that same wall might only consist of two perimeter lines with almost no internal structure. This is why many parts feel “paper thin” in real life, even though they looked solid during design.
A good rule of thumb is to design for real extrusion widths, not visual thickness. If your nozzle is 0.4 mm, a strong wall usually needs at least three full perimeters to be reliable.
That already puts you at roughly 1.2–1.6 mm minimum, and that’s for non-stressed parts. Anything that needs to survive handling, bending, or load should be thicker.
Instead of trying to make thin parts thicker everywhere, focus on how the forces travel through the part.
One of the simplest improvements is adding fillets. Sharp internal corners are the enemy of strength. A small fillet – even 0.8 to 1.5 mm – dramatically reduces stress concentration and makes parts much harder to crack.
Another effective trick is changing geometry rather than thickness. A thin flat tab is weak, but the same tab with a slight curve or rib becomes much stronger. Curves distribute stress far better than straight lines.
Orientation also matters. If a thin part is expected to bend or be pulled, try to orient the print so the layers run along the force, not across it. A simple rotation on the build plate can double the part’s strength.

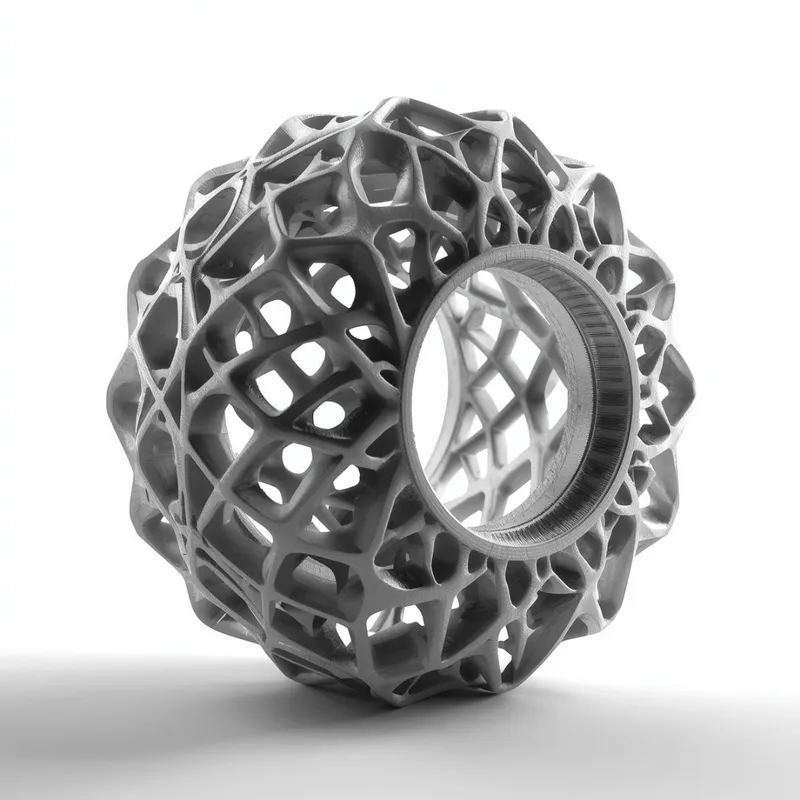

Decorative details can go down to around 1.2–1.5 mm, but they should never be load-bearing.
Lightly handled functional parts should be at least 2.0–2.4 mm thick, especially if they include edges or cutouts.
Anything structural, load-bearing, or repeatedly stressed should start at 3.0 mm or more, combined with fillets and good orientation.
A very common misconception is that increasing infill will make thin parts stronger. In reality, thin features often don’t contain any infill at all – they are just walls.
Even at 100% infill, a 1 mm thick wall is still only a couple of extrusion lines wide. Strength comes from perimeters and geometry, not from infill percentage. If a part breaks easily, the solution is almost always better wall design, not more infill.
A successful 3D printed design doesn’t just print well – it survives real life.
Before exporting an STL, it helps to ask one
simple question: Where will this part be stressed by human hands?
If the answer includes bending, pulling, snapping, or repeated use, then thin parts deserve extra attention. A few extra millimeters, a small fillet, or a smarter shape can turn a fragile print into a durable one.
Thin parts don’t have to break: They just need to be designed like 3D printed parts – not like solid plastic ones.
If you found any of these tips useful, feel free to check out my designs and follow for more—all of them are
created with real-world usability and print reliability in mind.
