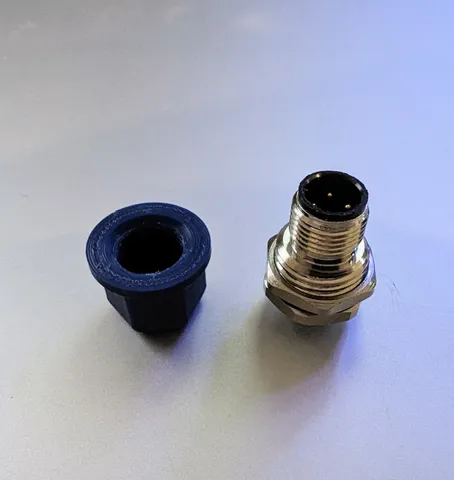

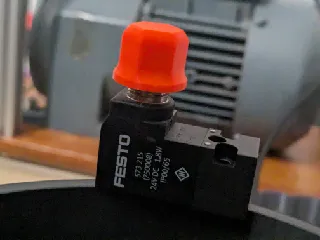

Hello, thx for the Cap. But it does not work/match with a M12 Connector.
Or do you have some printinstructions?
Regards Ronny
View one more comment
@spengineer thx for that. I've printeted it again in 0.08 and it works much better than befor.
Do you also have a cap for a female M12 connector?
@Easy1977_410727 unfortunately I do not, just for the male. All the con actors I had to cover were male, so I haven't tried making the other version.
I wish there was a mount for the umbilical. I use it for the LED sticks (2 inputs and 1 output)...

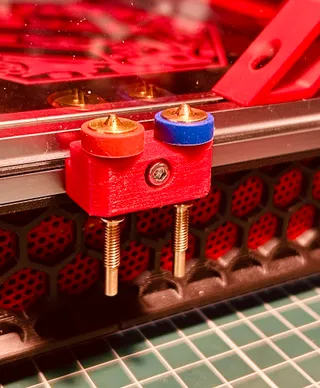

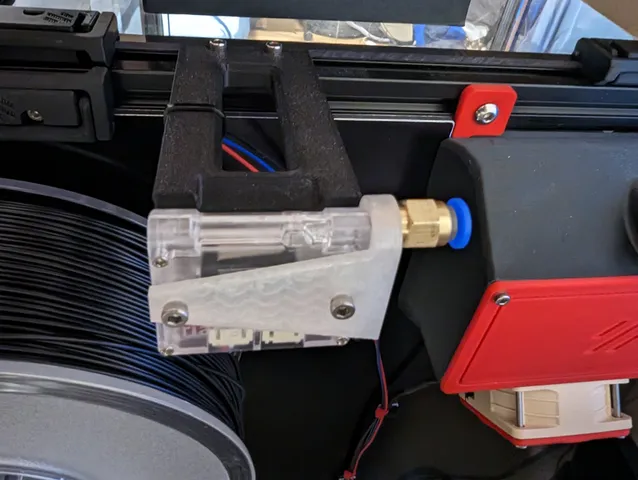

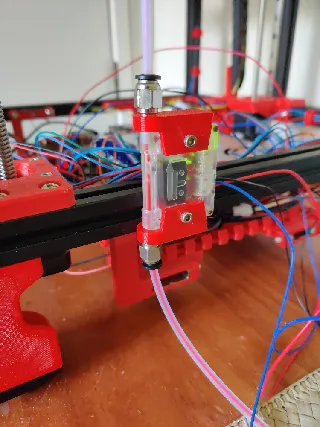

Printed in KiwiFil PLA Pro, Race Car Red. On the whole, this is a really useful print: I particularly appreciate the ability to have different kinds of connectors (or none) on each end! However, there's one thing about the design that I feel could be better: chamfers on the bottom face. This is _especially_ important for the M6 (and M10) threaded holes: as they face toward the build plate, they are a pain to screw into. I actually had to break out a tap to get the edge started, after which it worked well. Other than this though, excellent design!

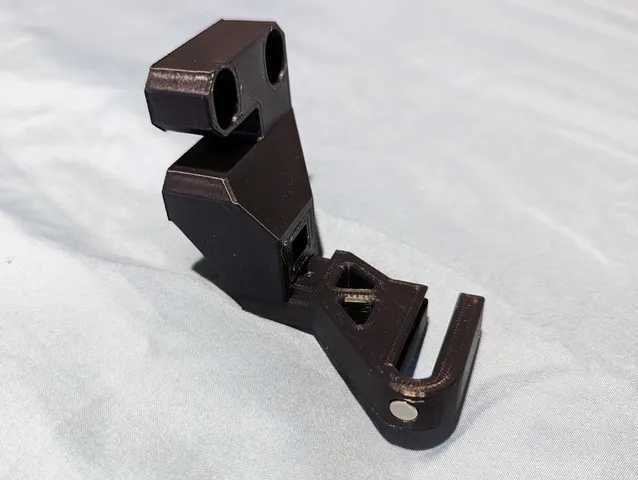

What arm did you use to mount to the extrusion?
Works well. Make sure you use good hook-and-loop or double-stick tape strips.

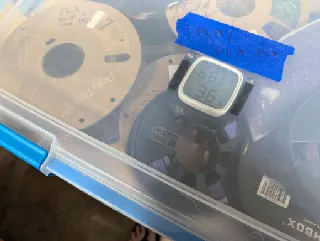

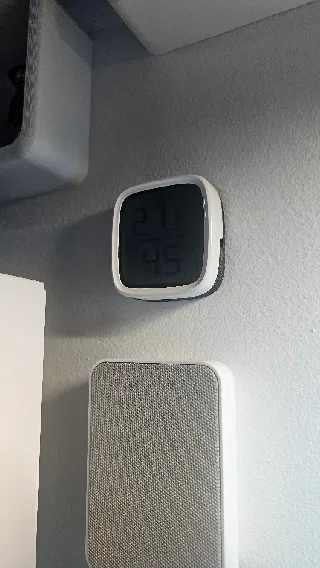

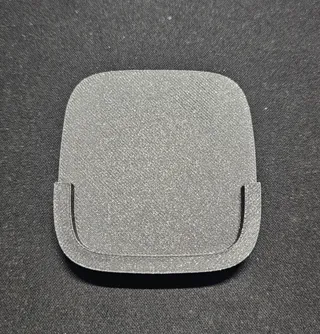

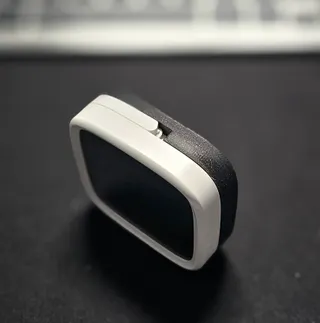

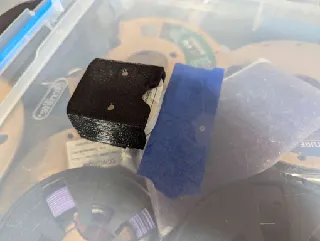

My magnets were too weak to hold the sensor securely so I found it necessary to stick a square piece of hook-and-loop to the backside of the sensor and inside of the mount to keep it from falling out when I take the lid off the dry box.
Tisk ok. Děkuji :-)
