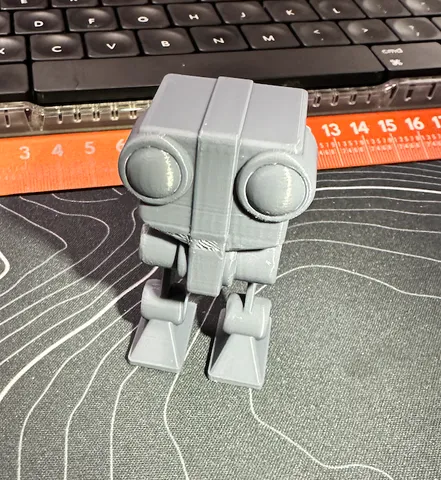

Do the legs move?
Hi how are things? Where can I get the STL file of the case, it looks great.
Could you upload it?

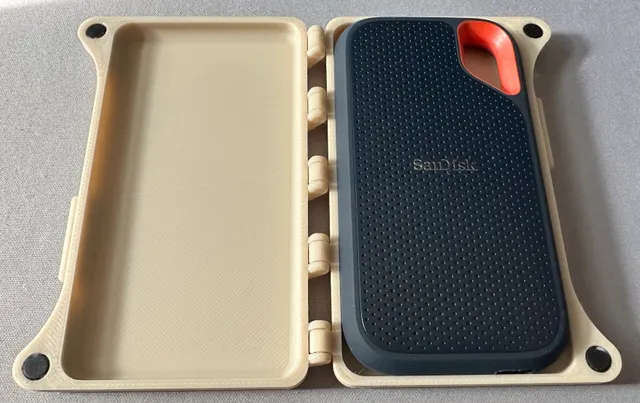

@RafaelCampo_343059 It's actually a purchased case. I've been using it for almost three years and I love it.
https://a.co/d/04wAHHg
Nice job!
(deleted)
This is an awesome model!
Thank you for sharing! 😊
Perfect size as well!

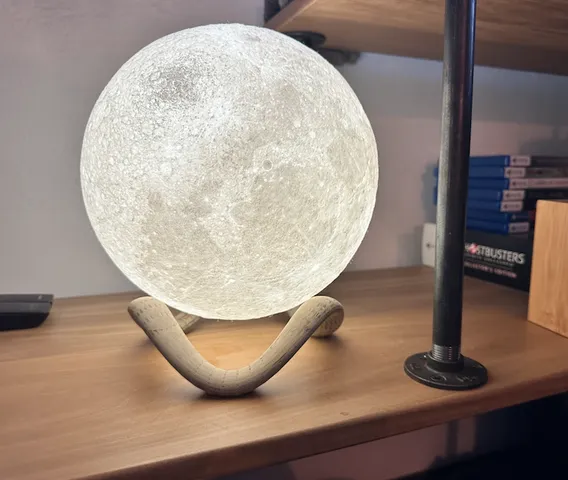

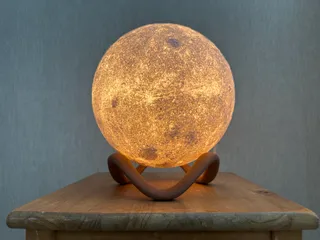

For the "Wavy Stand" I chose to print the remix from Michael R.
(Remix link in the Remixes tab.)
.
I printed this on my BBL X1 on which the moon fits the allowable build volume almost exactly.
.
For printing the Moon model, I used the following settings:
0.4 Carbon Nozzle
0.1 mm Layer Height
Seam Position: Random
100% Infill (Rectilinear)
no supports, no brim, no raft
Silent mode (slow speed) after print job start
Filament used: Bambu Lab PLA Marble.
.

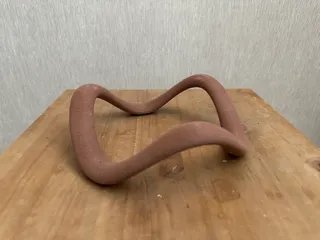

For printing the Wavy Stand model, I used the following settings:
0.6 Carbon Nozzle
0.24 mm Layer Height
Seam Position: Random
Top and Bottom shell layers: 8
25% Infill (Honeycomb)
Supports: Tree (auto), Style: Default, Threshold angle: 25
No brim, no raft
Silent mode (slow speed) after print job start
Filament used: Filamentum Timberfill Cinnamon Wood.
.
For printing the Base model, I used the following settings:
0.4 Carbon Nozzle
0.1 mm Layer Height
Seam Position: Random
8 Wall Loops
25% Infill (Honeycomb)
no supports, no brim, no raft
Silent mode (slow speed) after print job start
Filament used: Bambu Lab PLA Marble.
.
For all prints, I de-selected "Only one wall on top surfaces" in the Quality tab.
.

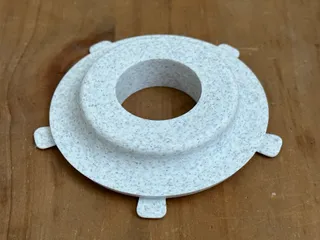

I adjusted the lips of the bayonet base to be a bit more snug when securing it into the moon. Also made the opening a bit smaller for the EU E14 lamp fitting.
Used a Philips Hue White and Color Ambiance E14 lamp.
This lamp can be controlled through an app on your phone via Bluetooth. You can set color, white light in various warmth's and brightness of the light. You can also remotely turn it off through this app. Awesome when placing this lamp in your bedroom for some dimmed atmosphere lighting.
.
Edit:
.

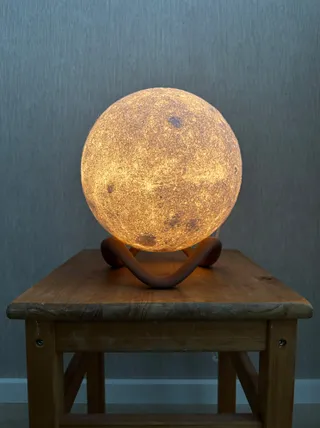

Added comparison photos of two different types of filament. In both models, the Philips Hue light was set at the same color and brightness.
Left:
Moon: Sunlu PLA - White
Wavy Stand: Amolen Dark Wood Walnut PLA
Right: Bambu Lab PLA - Marble
Wavy Stand: Filamentum Timberfill Cinnamon Wood
.
I see this with other people that used 'stone', 'marble', 'rock', etc. types of filament with a bit of grain in the material, that the black spots of the moon are a lot darker (too dark perhaps) relatively seen, that they should be. And perhaps in the plain white filament closer to reality.
Of course you can play with the Philips Hue light settings and create a different look, but I find that for the 'marble' version I rotate the moon lamp to a position where it shows the least darker spots. When I do, I find the 'marble' version better looking. But the 'plain white' one looks nicer with black spots visible (I don't have to worry about the viewing orientation of the lamp, other than the wire and fitting).
Also, when the light is off, the 'marble' version looks better for sure, as the plain white has a 'plastic' look and feel to it (personal taste 😉).
.
Other than that, the Filamentum feels more like wood type filament. Also smells nicely like wood when printing (probably not healty to sniff that in though.. 🙄).
The Amolen filament does not smeel and feels less like wood. It looks better when the moon light is on, as the color seems to come out differently when lightened by the moon. (I didn't sandpaper mine.)
.
Anyway, decide for yourself.
I was really wandering about this and hope it helps others to make their filament decision. 🙂 (edited)
View 10 more comments
@3DPrintGuy_1310410
Sorry, I have no idea how to modify an existing surface..
I'm also no expert by any means.
The way I modified the base, was to use a feature called "convert to base feature" in Autodesk Inventor. Then I just made a new ring and extended that one over the old model to a size I knew it would cover all 'triangles' of the original model.
The inside of this ring I adjusted to the E14 size I needed to fit the EU fitting.
But to modify a landscape like that, from what I've seen I think you might need the free software called "Blender".
But I don't know how to work with Blender. It's also got a very steep learning curve.
Sorry I can't help you further! (edited)
@Squawk_388463 big thanks for the detailed comment, it helped a lot for planning.
Do you mind sharing the files with me as well?
The available MF3-Files are just the moon itself (twice) but not the base. As I also want to install an Hue E14 bulb it just seems perfect.
Thanks in advance!

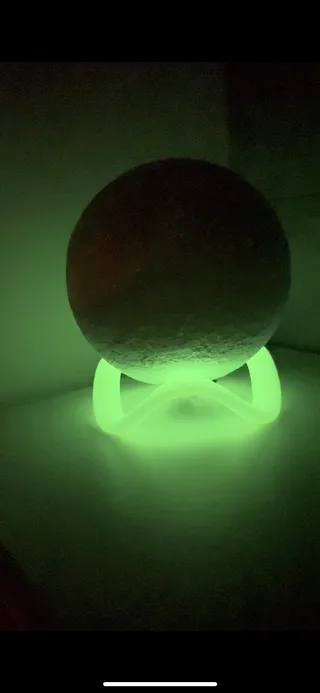

@3d_printing_room Dude, you should have printed the moon in the glow in the dark as its already white! I have blue and green in the glow in the dark.
But man, after slicing the model - 2 days to print is harsh lol.

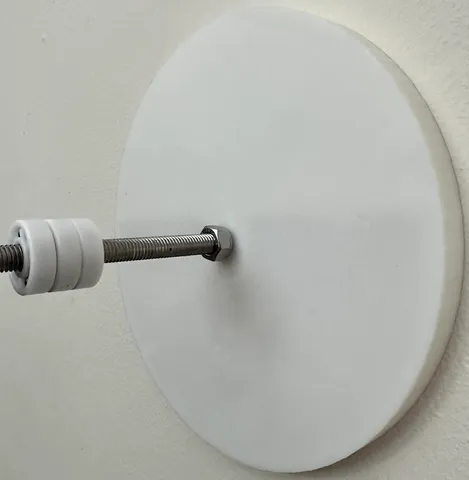

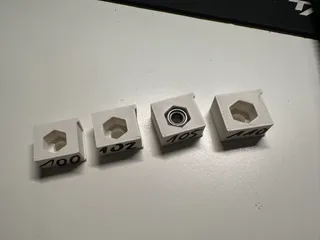

For anyone printing with good tolerance printers. Print this on 105% uniform scale. This way the M8 Nut fits nice and snug. Don't forget to scale up the other part too!
(printed on Bambu X1C) (edited)
I used a 8 drill bit and enlarged the hole a bit and then heated the nut and pushed it in. But would of been nicer if the design was for the standard M8 parts. As in the cap from part 9 of the sculpture.

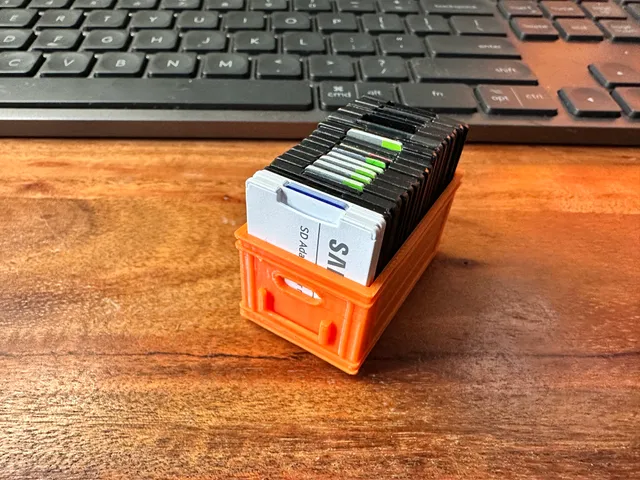

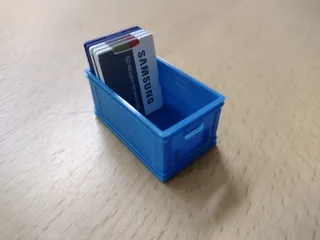

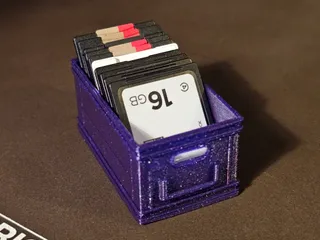

@CADGuy Thanks for sharing your print! I still have mine on my desk. Between my laser cutter and my camera, it's a great place to have all those spare cards and "adapter" cards.
