Can you share your STEP files for re-editing?
@YorkChan_2399235 Sorry its just a messy blend file. If your still intersted I can work on cleaning it up and posting it :)
@Saul_848289 Yes please! I'm working on making something like this but adding accelerometer and bed leveling support.

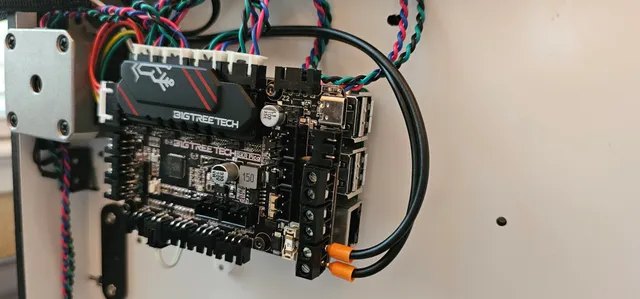

Hello! I used the tutorial and was great. But did not changed the board. I liked what you described here, but can't imagine how to power the BTT board through the Ultiboard. do you mind explaining it? (edited)

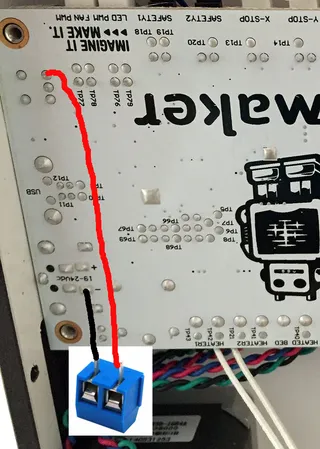

@My3DBr_149403 I used the a two wire pcb screw terminal and crazy glued (and hot glue) it to what I think is the bed relay. Then I soldered one wire from the positive power pins that is only on when you enable the power switch to the screw terminal pin. I picked a random large ground pin from the board and soldered that to the other pin of the screw terminal. Then I just put hot glue on all the exposed connections (doesn't seem safe, but so far no issues).
