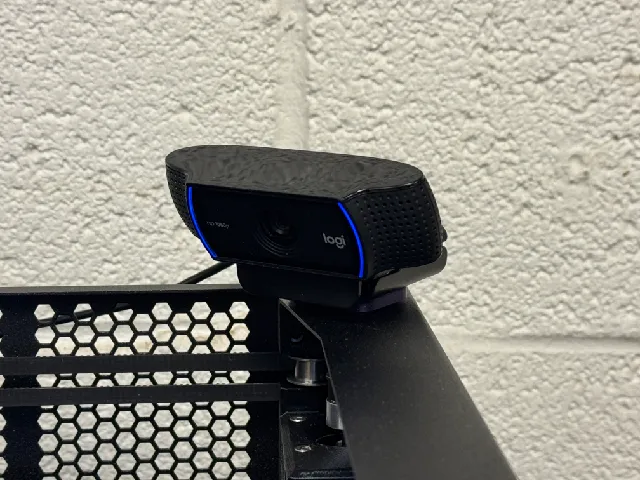

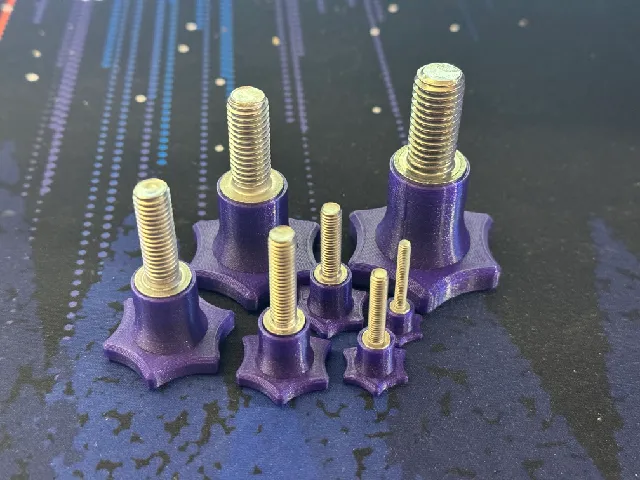

Nice. I was thinking about doing something like this but you beat me to it. I even 3d printed the bolt for it. lmao.. I have the exact same camera as you. Love it.
Works but it is *ver, very* bulky enclosure and hides rpi ports deep inside a case with access through huge hole (maybe that was the idea - to kind of hide plugs).

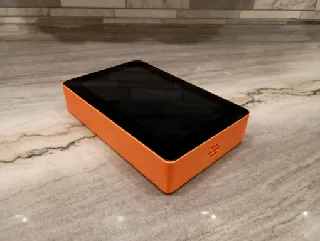

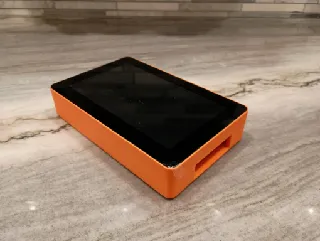

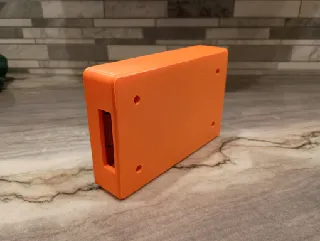

(Raspberry Pi Touch Display 2 Case VESA 75 Heat Set.stl variant)
File:
raspberry-pi-touch-display-2-case-no-mounting.stl
Filament:
Orange - Creality HyperPLA
Slicer:
Creality Print
Settings:
15% infill (zigzag)
3 top surface skin layers
Support:
Normal
Support Everywhere
Zigzag
Build Plate Adhesion:
Brim
Otherwise "Normal 0.2mm" preset
Notes/Feedback:
Good fit and mounting holes perfectly aligned.

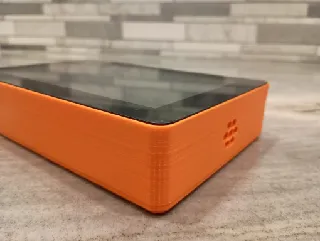

The display did not fit flush, however. The bezel is just barely above the case all the way around. I would prefer a flush fit to help provide a little bump protection to the display.
Probably need to tweak the support as the support for the hexagon vent didn't come off cleanly. (edited)

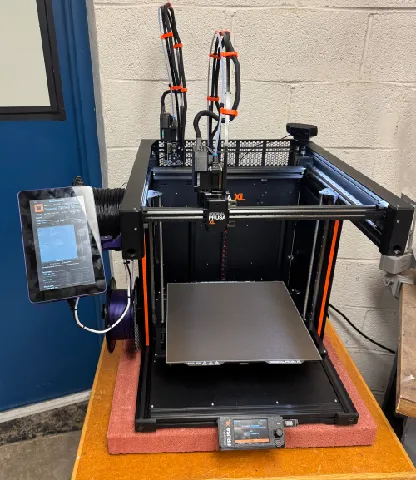

@Klivian_1917349 Ya, I made the fit super tight, it came out for me but I was using a Prusa XL, but I will post a new version with a looser tolerance.
The hexagon vent is designed to be printed without supports, makes sense the supports didn't come out nice, they are pretty small openings.
@Rojikku_56138 Cool, will look forward to trying again! Great model and love all the mounting options. Probably going to re-print with ABS on Bambu P1S next go around.
