Great design!
@bradicus_1319212 thank you!

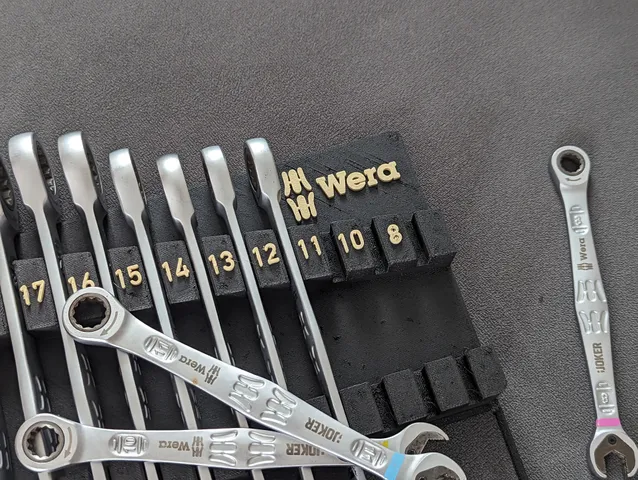

Awesome Design, is it possible you can also make one for the 2022 Wera X-Mas Calender Set with the 4 Jokers? It has different sizes on each end.
1 x 6 and 7 mm
1 x 8 and 9 mm
1 x 10 and 11 mm
1 x 12 and 13 mm
@Amnesior_1092071 it's unlikely I will find time, but posting a source file so it's easier to remix. (edited)
@MrStolarsky thanks mate, i will try it
I do appreciate the well thought out design and taking better advantage of the grid by overlapping the compartments, a good thing to see.

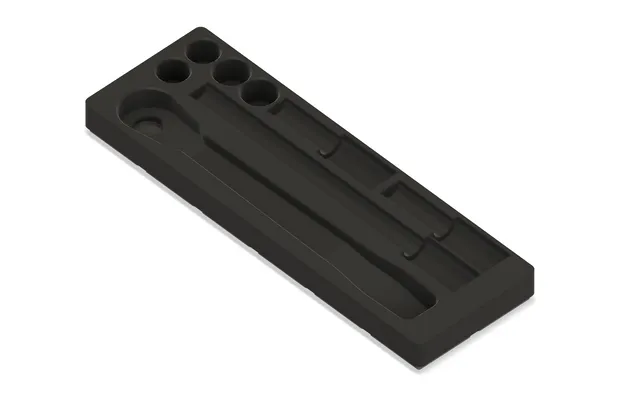

What did you design these in? I have other Wera tools I'd like to match and you've certainly started this off. I'd like to remix it to just be the ratchets and no accessories.
Thank you.

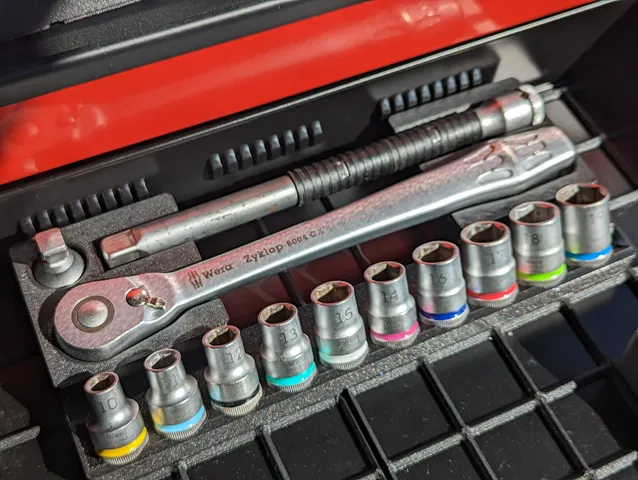

@MrStolarsky thank you for doing this! The numbers have turned out great!
Couple of suggestions:
- after 17mm the bottom doesn’t change in size. The spacing is correct but the base hole is too big meaning it’s upside down.
- there is a similar problem with 13mm, the base hole is the same size as 12mm but it’s actually larger for a 13mm socket.
View 4 more comments

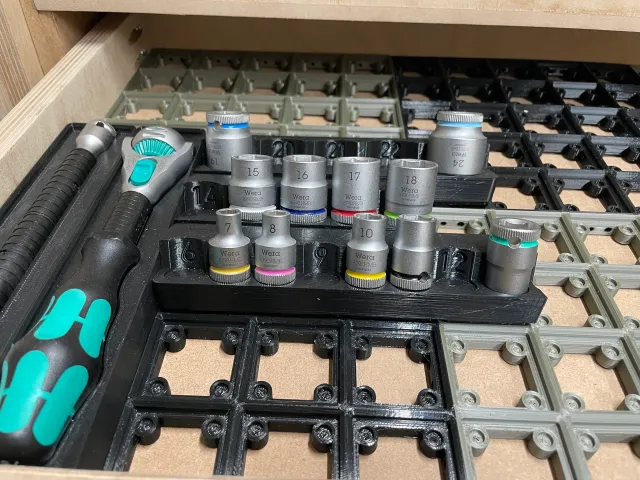

@MrStolarsky yep, all custom built into my workbench. With this and my French Cleat wall I’m hoping to get some valuable garage space back
@dtsn_721375 @dtsn_721375 100% you will. I started organizing my toolbox (take a look at my designs) and all of a sudden 4 drawers fit into one and a half.

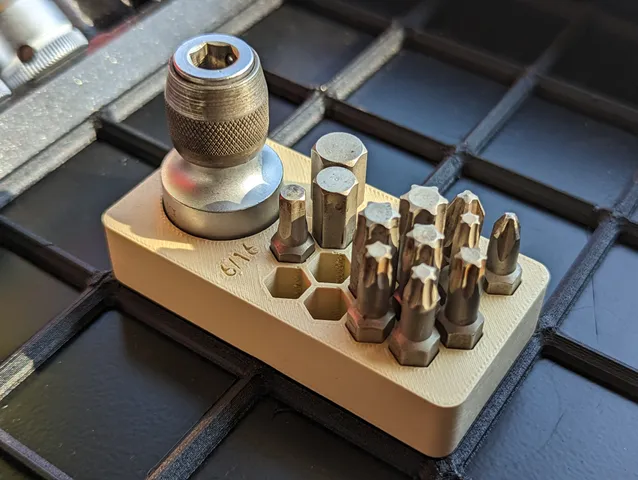

The step thet holds the Bits in on the cround could be a bit deeper for my taste. But its an awesome model

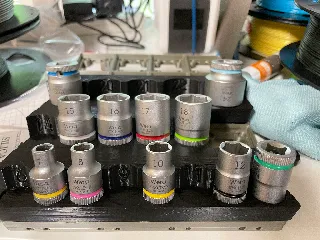

I was just going to design my own but yours looks a lot better! Love the idea of using the ‘take it easy’ tool finder system. Are you able to cater for the complete set (6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/22/24)?
@dtsn_721375 first of all, kudos on the complete set :)
Wera has precise dimensions on their website, so I can design even for sockets I don't yet have. Seems like a weekend project, watch this space.
@dtsn_721375 I gave it a try, now it's your turn: https://www.printables.com/model/498152-gridfinity-wera-38-complete-socket-set-6-24mm
I experimented with labels this time and HAVE NOT printed this yet. Let me know, I can provide a version without labels as well.
View one more comment

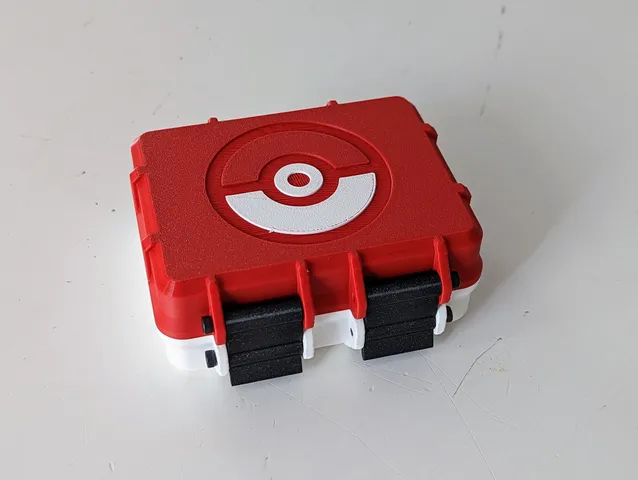

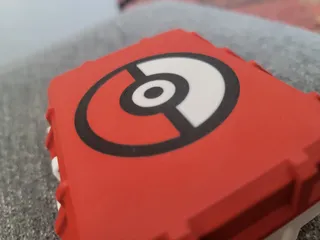

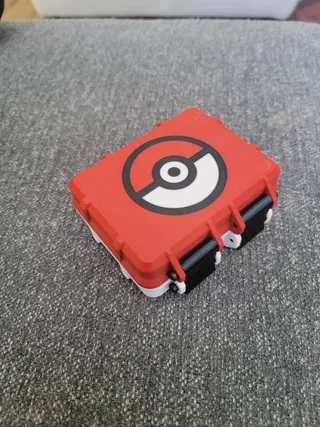

@MrStolarsky as long as it's not sold it's ok. Or am I wrong? I mean, this is nothing compared to the hugely downloaded Pokemon models on this website.
@JayRay that's my assumption as well.

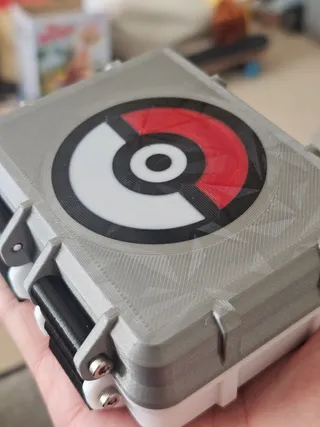

Printed in Sunlu white, red and black with eSun Silver. Used a PEO plate to get the bottom pattern too.
