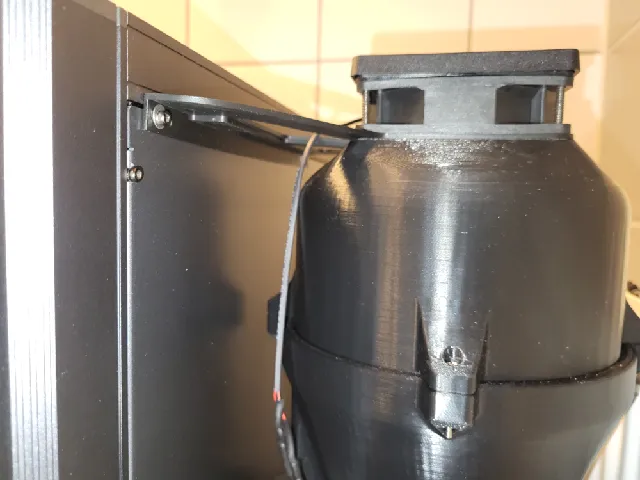

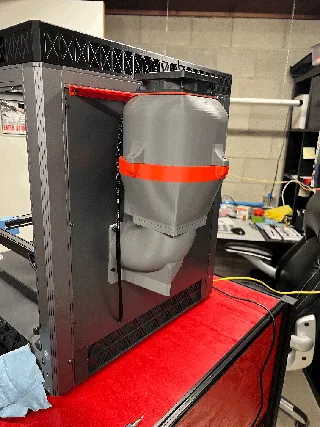

Great project for my printer. I stopped it at layer 400 and added the red to match the bracket.

TLDR: This model is dimensionally accurate and worked well. Print it.

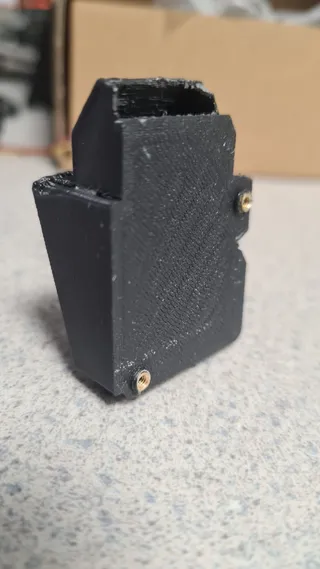

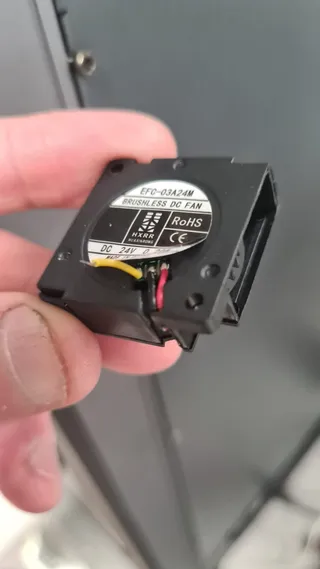

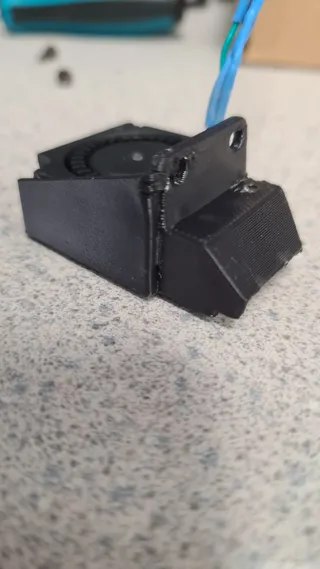

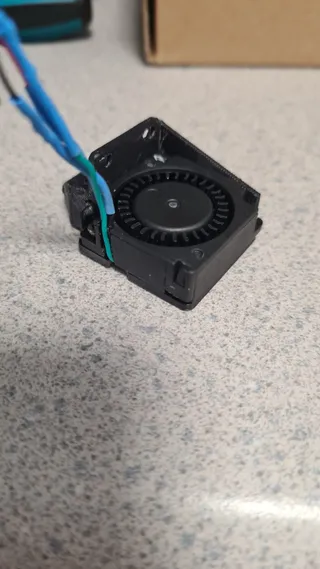

My part cooling fan snapped off (see pics 4,5). I found this model and prined it in Filaform ASA (260C Nozzle, 100C Bed). With the existing fan, I had to de-solder the 3 wires from it, add extensions to the plug side to ensure it reached (170-180 mm long is a good length). I then widened the printed part holes with a drill & inserted 2x3.5 mm threaded inserts. I put the bolts back through the fan to mount to the printed part (see pics 1,2,3). I then re-routed the cable to 'FAN2' behind the extruder fan, and bolted the entire assembly back onto the tool head. I'm up and printing again.

Thanks for the design! (edited)

Thanks for this. I just did exactly the same thing!
