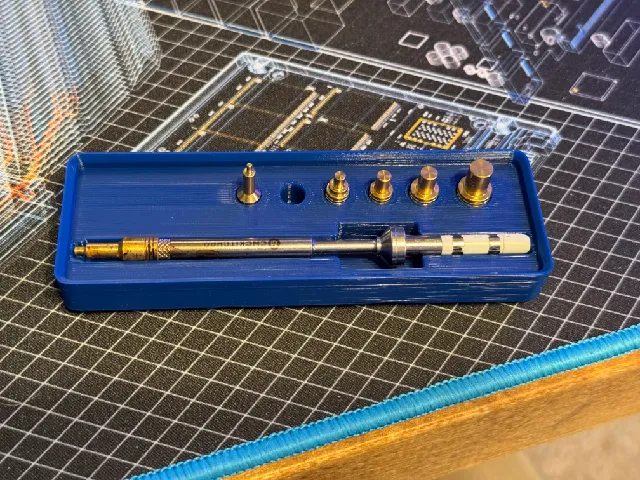

Printed just fine and fits my Gridfinity bases well.
The holes for M4 and M5 (the middle two) are too small however. After some time with a knife and the inserts themselves, I've gotten them to fit. Everything else fit just fine straight off the printer!
@EdV_259258 could you increase those two a bit?
In the meantime, if you are about to print this model I would suggest creating a negative cylinder in your slicer for each of those holes. The inserts are 6.8 and 7.3mm in diameter. The model has 7mm diameter holes for both.
@gezepi_415570 Thanks for letting me know, it sounds like they changed the tooling in a recent production run. I've tweaked it and I'm noting the adjustment you requested. I added about .6 mm in diameter wider than what you measured so the M4 will be 7.4 and the M5 will be 7.9 which hopefully won't be too big.
@DanielAdastr_2755655 This make is straight fire - love the color choices.

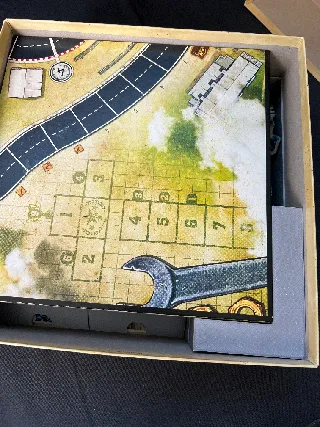

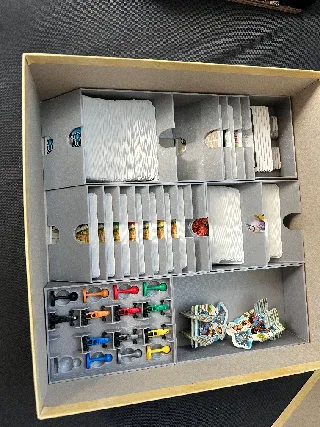

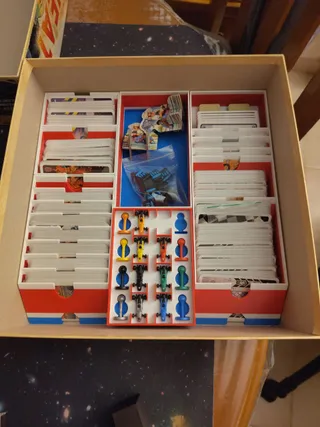

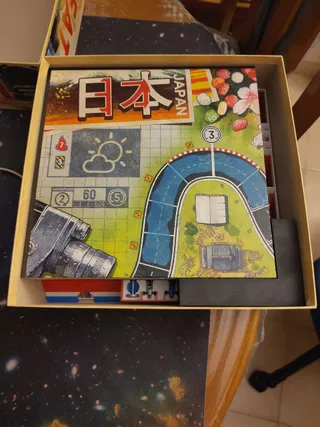

Excellent insert, I love how all the parts neatly fit into the box.. I made a small improvement for the game boards to be fixed in place rather than slide around - as that is making the box difficult to handle and transport.
https://www.printables.com/model/975897-board-alignment-insert-for-heat-pedal-to-the-metal

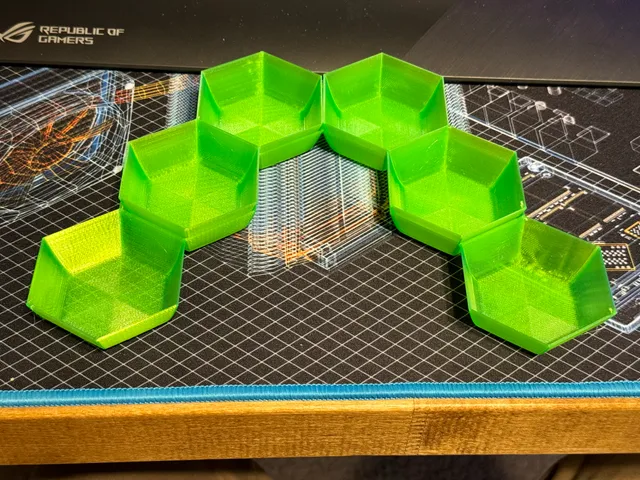

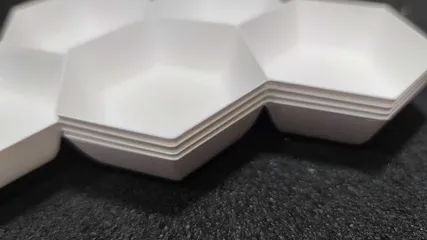

Awesome model - prints easy, saves filament, and the trays stack really well into each other.
The top where the trays join together is not the strongest, but that can be fixed easy, so great model overall.

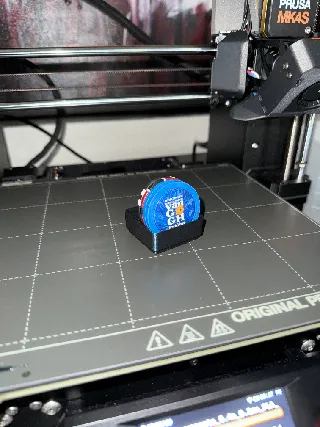

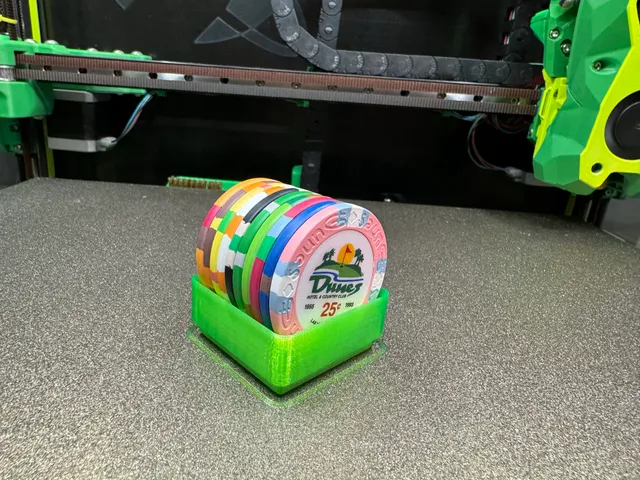

Cool model. Just happened across it, and I have like 4-5 chips that just kind of float around on my desk. Nice to be able to place them in gridfinity. Burnt titanium PLA.

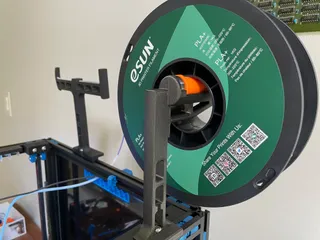

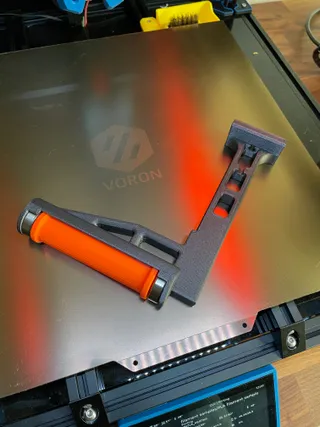

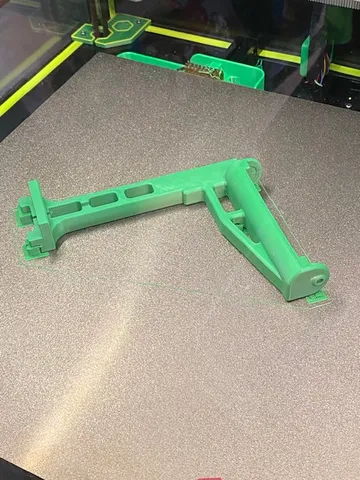

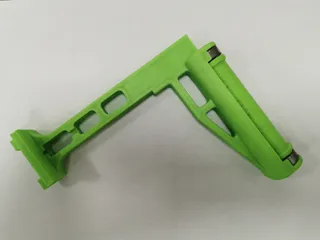

Nice smooth spool rolling. Going to mount one on each side of the printer to make color swaps easier.
very good print i printed one for me and one for my dad we both loved it

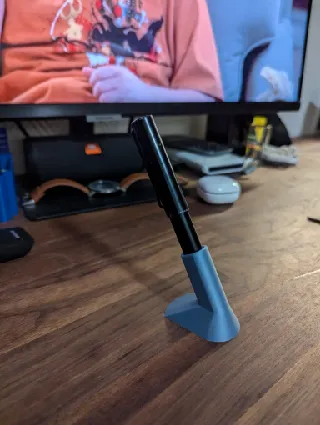

nice aditon to my desk, tips over sometimes, though think imma incorporate this into a bigger desk sorter
