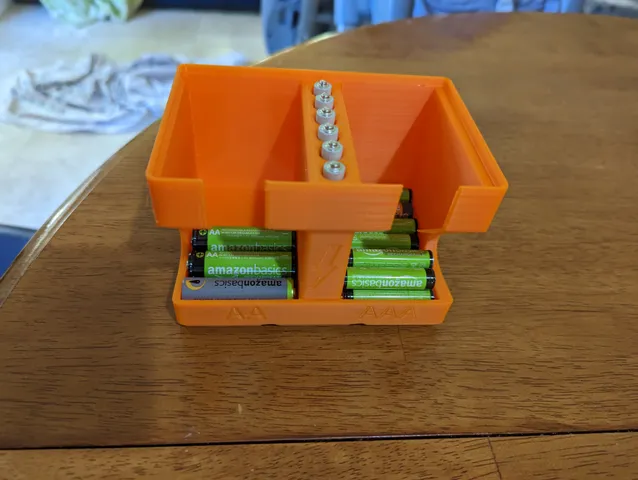

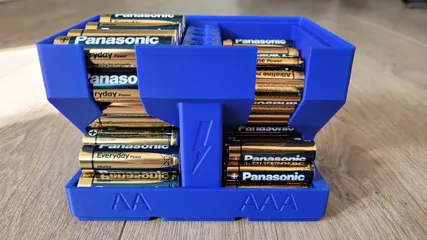

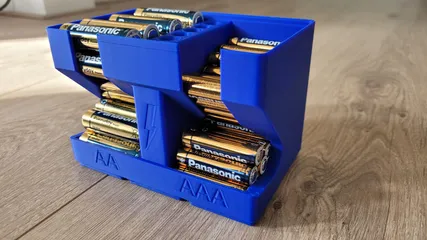

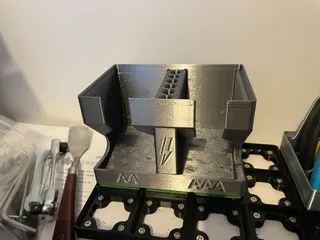

Nice model to fit three sizes of batteries. It would be a bit better if the inside 'ramp'/lip would be a bit longer to prevent too many batteries from coming out at once.

Great to print, printed in Bambu Lab Basic PLA with 0.20mm layers.

Mine warped a bit, sadly, as I did not use a brim and I made some mistakes while paused to insert the magnets. But the design is very nice, I may print it again in the future to really make it right.

@Zack looks like you went a little overboard with the screws in your baseplate, eh?

Ctrl + Enter to send Enter to add a new line
Dan Z 7
Dan Z
@DanZ_476227
published a new model March 31, 2023 at 10:10 PM
March 31, 2023 at 10:10 PM

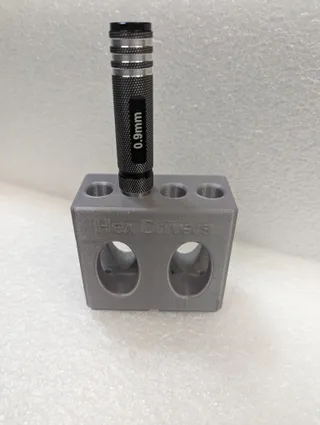

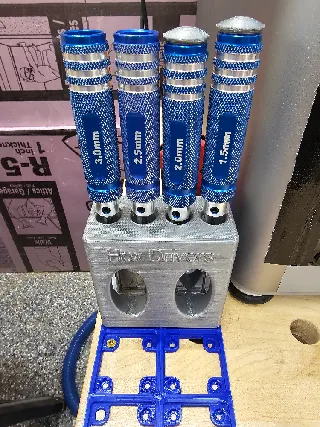

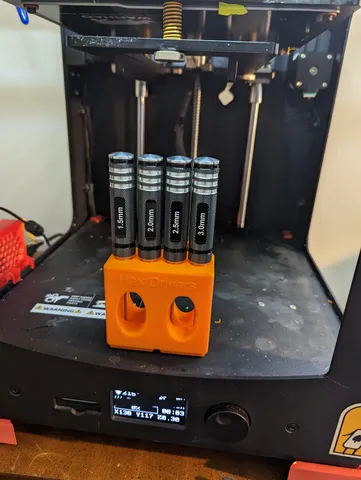

I saw the other comment about different length screwdrivers. I measured mine and scaled up the height on my print. The drivers fit very well.

I looked at the option of shortening the shafts, but mine had a flat spot ground to accept the 2mm set screw. I did not want to grind another flat, so I left them at the stock height. Thankfully, this design was flexible enough to accept re-scaling well.

Very Nice. Thank you.

Ctrl + Enter to send Enter to add a new line
Dan Z 7
Dan Z
@DanZ_476227
published a new model March 30, 2023 at 10:57 PM
March 30, 2023 at 10:57 PM

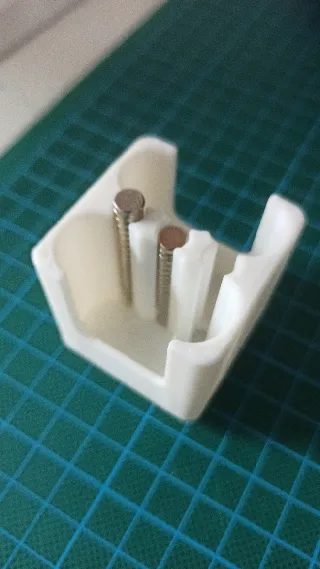

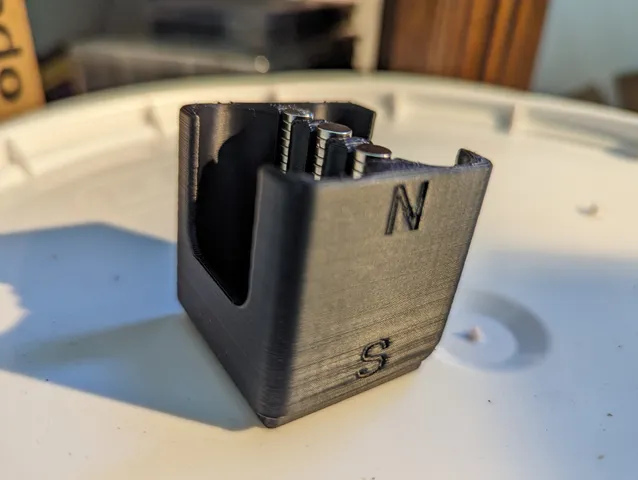

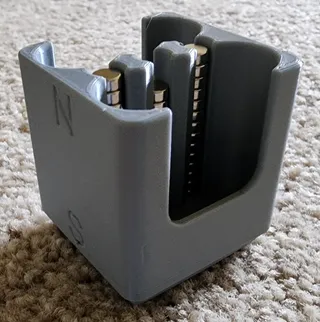

Came out great!

(My bad: I didn't check the height and the top before and therefore it is close, but doesn't fit into my storage box. Have to modify it and print again)

does the job perfectly, and you even have space to put your finger inside the box to get out the magnets, well design thanks!

Ctrl + Enter to send Enter to add a new line
Dan Z 7
Dan Z
@DanZ_476227
published a new model March 30, 2023 at 10:52 PM
March 30, 2023 at 10:52 PM

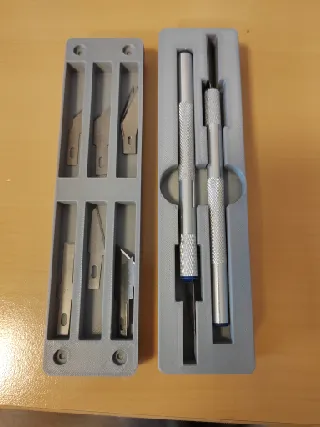

Good and Bad

Good: Innovative design idea to store the spare blades out of sight/below

Bad: cramming two scalpel blades into one row makes it difficult to grab them (or maybe I just have fat fingers).

I plan to remix/redesign and just keep one blade up top and have more grab space, I don't need two anyway, maybe one will go under.

That being said good idea and helpful for getting started before I knew how to use fusion and just wanted my tools organized.
