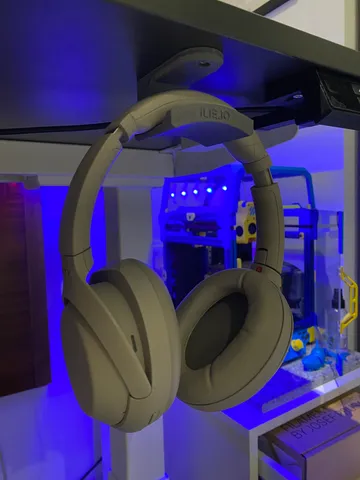

Looks and feels great, however, the post for the screw is possibly too short as if i drive in the screw, it bottoms out. Might have a look at the step file later, thanks for sharing
How did you screw in the 2nd screw? The hanger blocks a drill. Are you willing to share step / f3d files so I can more easily add a hole myself?
BTW, we've got the same headphones :P

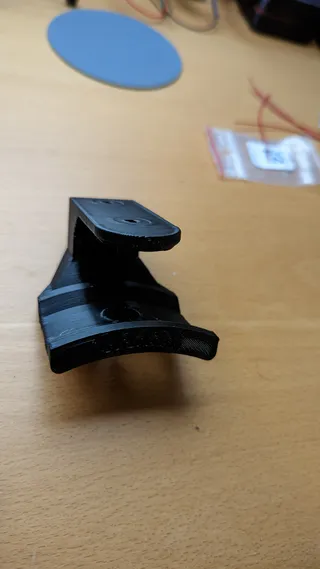

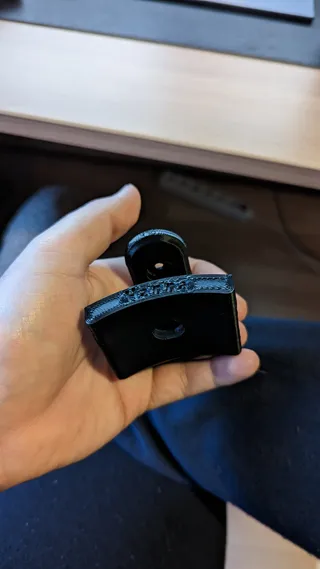

Added some access holes to be able to attach it to the desk, and while I was at it, might as well add my wife's name to it.

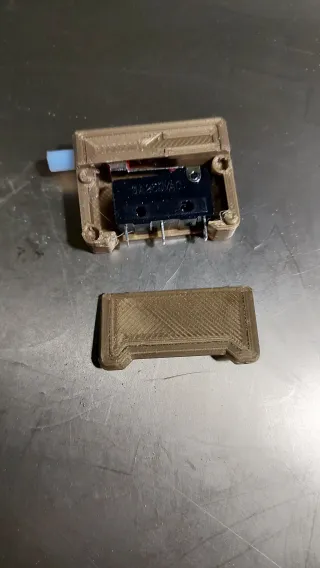

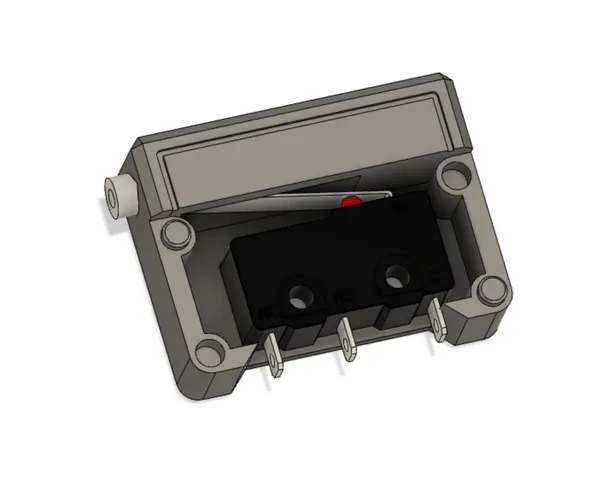

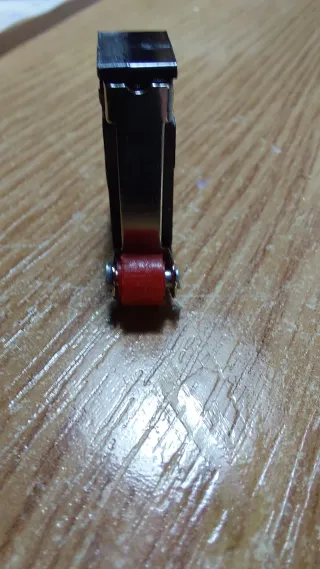

Perfect! I just needed to make a slight adaptation to fit the wider roller of my switch. The filament runs with less friction than in the optical sensor that i use now.
@SorinB I noticed that my roller is somewhat tight as well, so I will update the model to give it a bit of leeway. Thanks!

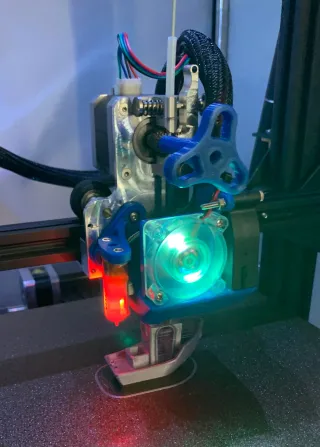

This is a nice shroud for the Microswiss. I've tried about 5 different versions, including my own customized Satsana, but this one is the best so far. Printed in Novamaker blue ABS.
This mounts securely to the microswiss with two bolts -- so it won't spin. It doesn't mount behind the hotend, like other designs, so it's easier to work on. If you use the right side clip, then it's very secure. I think you can get away without using the clip, though.
The bltouch mount is nice. The close offset lets you probe most of the bed space. The only flaw is it's harder to print in ABS, because of its weird curves. It could be redesigned to not need supports, and would be much easier to print.
The extruder knob is easily accessible. (This is an old PETG knob from someone else's design.)The cable mount is pretty secure. The cutout for the wires should be deeper, because they press against the cooling fan.
The only major flaw is the clip system on the right. It's not very secure, and the plastic is likely to crack there from the screws. If this was updated to use heat set inserts, then this design would be perfect. A heat set insert for the cooling fan would be excellent.
@DJEuthyphro Hey, thanks for the feedback!
About the clip on the right, is has been done a bit in haste and could use a revamp. Heat set screws are a great idea, and if I have time to come back to it I will do a version like that!
About the BLTouch mount, the inserts that interface with the two screwholes are necessary for both the whole assembly, and the BLTouch mount not to rotate in place, making the design a bit awkward to print. The solution I found was to cut the mount on a plane parallel to the MicroSwiss plate, and superglue the two parts. Superglueing does not affect the tolerances, as the screws go through both halves and align it. I should have probably mentioned in the description and/or provide the split part. (edited)
@Calini Thanks for making this! I also made some cable guides for the Microswiss here: https://www.printables.com/model/239909-microswiss-direct-drive-cable-guide
Hey, I'm not too good with Fusion360 yet, but I'm good enough to make the BLTouch holder fit a CRTouch if you could please give me the model files to edit I would really appreciate it. I guess I could try to make my own but IDK if I'll be able to, it would be so much easier to modify the BLTouch holder to fit it. Please and Thanks.
